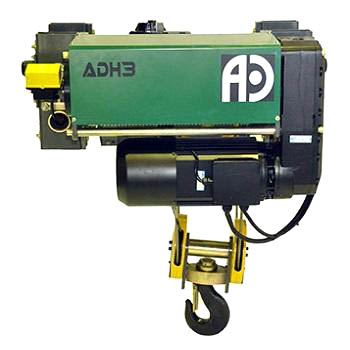

ADH SERIES

BRAND: AD

STANDARD FEATURES: –

1. Hoisting Motor:

  • Dual-speed hoisting with 6:1 speed ratio
  • 30 minutes rated (60% ED)
  • Class F insulation
  • IP65 protection class
  • Standard temperature monitoring
  • Thermal protection

2. Hoisting Brake:

  • Adjustment-free
  • Asbestos-free brake pads
  • Stroke limitation for wear indication
  • Heavy duty micro-magnetic disc brake
  • Gearbox
  • Totally enclosed
  • Hardened and ground helical-type gearwheels
  • Oil path lubrication lifetime

3. Gearbox:

  • Totally enclosed
  • Hardened and ground helical-type gearwheels
  • Oil path lubrication lifetime
  • Corrosion-proof housing with powder epoxy paint (70µ)

4. Rope Drum and Guide:

  • Deep-grooved rope drum
  • Heavy-duty drum bearing
  • Cast iron rope guide

5. Traveling Machinery:

  • Enclosed drive wheels and lubricated drive train

6. Inverter control for trolley travelling:

  • Fast load positioning
  • Reduced load swing and wear
  • Wide speed range
  • Adjustable acceleration and braking ramps
  • Safe and easy use

7. Limit switches:

  • Upper and lower geared limit switch for regulated load travel
  • Cross-bars position limit switch
  • Overload cut-off

OPTIONS:

  • Stepless hoisting speed control

For more info, please visit adhoist.com
